JOHOR BAHRU · ISKANDAR PUTERI · GELANG PATAH

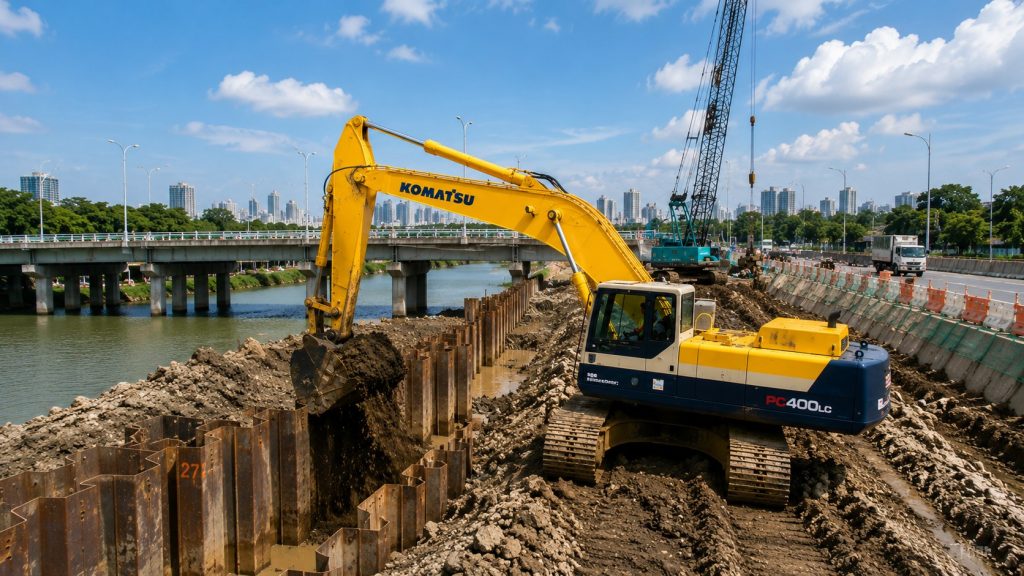

40-Ton Excavator Rental
in Johor Bahru
Fully Operated. CIDB-Certified. 24H Mobilisation.
40-Ton · Heavy Duty
What the 40-Ton Excavator Can Do
Heavy-duty muscle for the biggest jobs in Johor Bahru. With the right head fitted it also drives sheet piles and bores foundation holes, so one machine covers earthwork, shoring and piling support.

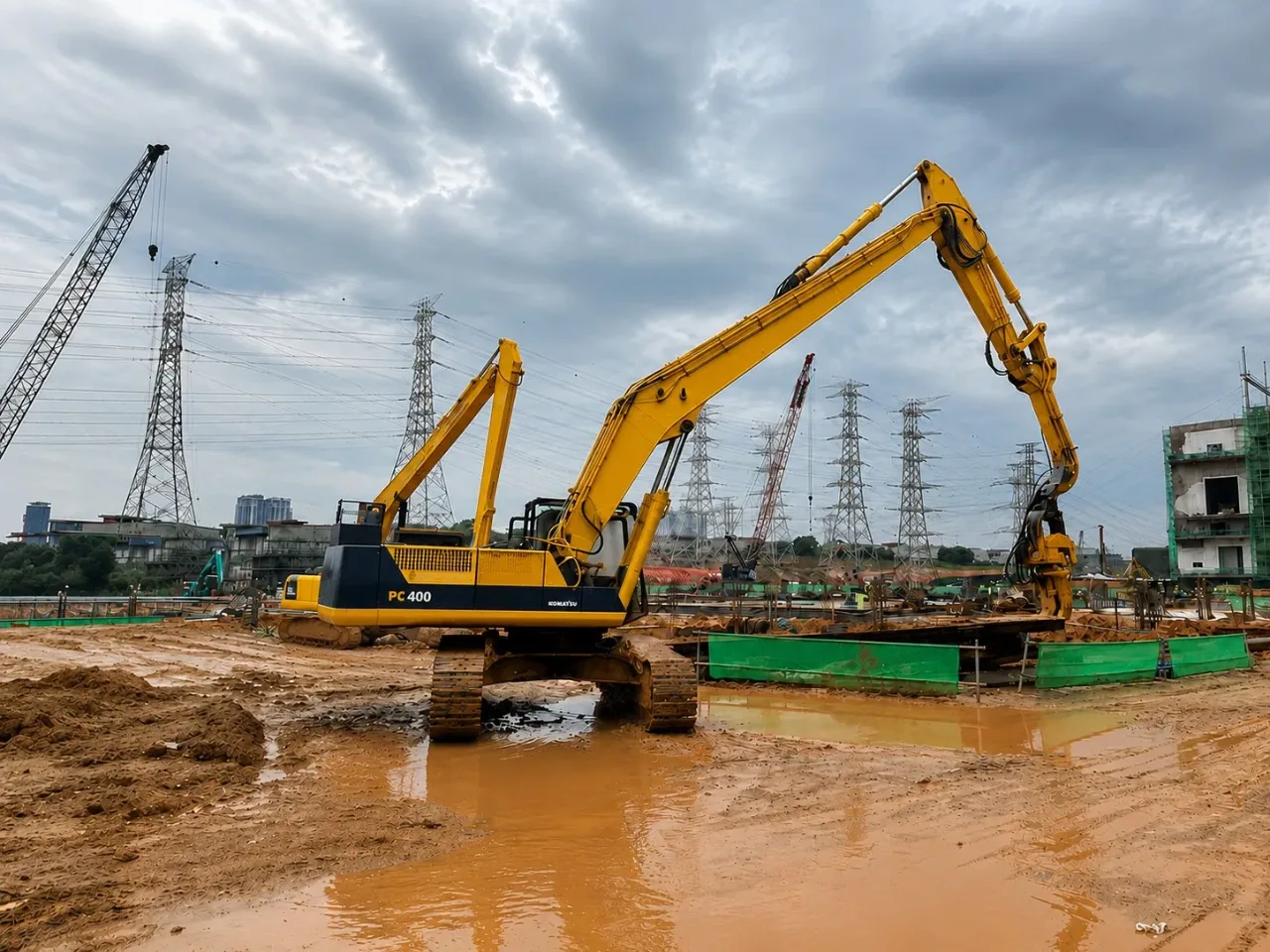

Our 40-ton excavator on heavy earthwork in Johor.Hire the 40-tonne when the job looks like this
- ✓High-power bulk excavation: mass earthmoving, cut-and-fill and deep digs where the quantity, not the access, sets the programme.
- ✓Sheet pile driving with a vibro hammer: shoring, cofferdams and jacking pits, using our excavator-mounted sheet piling head.
- ✓Auger foundation drilling: boring holes for piles, footings and foundation works.
- ✓Quarry and aggregate works: loading, ripping-face handling and bulk material movement.
- ✓Infrastructure and piling support: platform preparation and heavy trenching alongside a piling rig.
What a 40-Ton Excavator Moves in a Day
The 40-ton is not a bigger 20-ton. It is a production machine: a 1.9 cubic metre bucket instead of 0.8, and 26 tonne-force at the bucket instead of 16. On a bulk cut that is not an incremental difference, it is the difference between one machine and three.
| Working figure | 40-ton fleet | What it decides |
|---|---|---|
| Operating weight | 41.7 t | Stability under a full bucket, and what the low loader has to carry |
| Bucket capacity | 1.9 m³ | More than double the 20-ton — the whole reason to book this class |
| Bucket breakout force | 256 kN · 26 tf | Weathered rock and compacted fill that stall a 20-tonner |
| Arm crowd force | 200 kN · 20 tf | How hard it can pull the bucket through a face |
| Max digging depth | 6.85 m | Basement and deep bulk excavation in one lift |
| Max reach at ground level | 10.9 m | Working from the edge instead of down in the hole |
| Engine power | 345 hp · 257 kW | Whether it holds cycle time on a long day, not just on paper |
Figures are the working specification of our 40-ton class. Breakout and crowd forces are quoted on the ISO 6015 standard, without power-boost. Transport is on our own low loader — roughly 12.0 m long, 3.44 m wide and 3.29 m high on the trailer, which is what your site access has to accept.
What We Can Fit on the 40-Ton
Two heads turn the same carrier into a piling rig or a drilling rig. Both run on our own 40-tonne machine, with the operator included, so you are not mobilising a second contractor to do one item of work.
Vibro Hammer
Excavator-mounted sheet pile driver for shoring, cofferdams and jacking pits. Drives and extracts on the same head, so there is no separate piling rig to bring in. On record driving the sheet pile wall for a jacking pit on the Electrified Double Track railway job at Segamat, Johor.
Diagram · on record at Segamat, JohorAuger
Bores holes for piles, footings and foundation works. Clean vertical holes cut straight from the excavator, without mobilising a dedicated drilling rig.
Diagram · ask us for available sizesLooking for a rock breaker? It runs on our 20-tonne excavator and our backhoe, not on the 40-tonne.
Our Own Machines, Start to Finish
On a data centre or infrastructure site the machine does not get through the gate, the paperwork does. Here is what comes with the unit.
Our own machine, our own fleet
Every machine we send out is our own: booking, operator, servicing and anything that comes up on site. One company, one number to call
Insured
Mobile plant & equipment policy, current, covering the machine on site and in transit
Serviced monthly
Signed 14-point service, maintenance and inspection sheet: oils, coolant, greasing, leak check, tracks, filters, final drive, swing motor
CIDB-registered operator
EXH2 Hydraulic Excavator Operator competency, Level 2. A 40-tonne machine with a piling head on it is not a job for an untrained seat
Not Sure Which Excavator Suits Your Project?
Contact us with your site location and scope of work.
We’ll recommend the right machine and confirm availability. Same day.
Why Contractors in Johor Bahru Choose Green City Machinery
🕐 24-Hour Mobilisation
Confirm today and we put machine and operator on site within 24 hours, across Johor Bahru and surrounding districts.
🏅 100% Certified Operators
Every operator is CIDB-registered, JPJ and NIOSH-licensed. PPE-compliant and experienced on active construction sites.
📦 One Call, One Supplier
Machine, operator, transport and fuel, all in one rental. No chasing separate contractors or managing multiple vendors.
📅 13 Years of Project Experience
Since 2013, supporting earthwork, infrastructure and data centre projects across Johor Bahru, Iskandar Puteri and Gelang Patah.
What Contractors Say About GCM
⭐⭐⭐⭐⭐
“We had a great experience with Green City Machinery for excavator rental in Johor Bahru. The machine was in good condition and the service was very professional. Highly recommended for construction works.”
— Eddy Zulkarnaen · Google Review
⭐⭐⭐⭐⭐
“The machines were reliable and well maintained, and the operators demonstrated good site awareness. Their team responded promptly to site requests and supported our earthwork and excavation activities without major downtime.”
— Loi Cia Yi · Google Review
Frequently Asked Questions: Excavator Rental in Johor Bahru
Yes. Every rental is fully operated: CIDB, JPJ and NIOSH-licensed operator included as standard. We do not offer machine-only hire.
Within 24 hours of confirmed booking. Our base in Skudai covers Johor Bahru, Iskandar Puteri, Gelang Patah and surrounding areas with fast turnaround.
Yes. We run a vibro hammer (sheet piling head) for driving sheet piles and an auger for foundation and piling holes. Both charged separately from the machine rental. Note: the 40-ton does not carry a breaker or ripper.
Monthly rental is standard, with most projects running 3 months or more. Shorter-term rental can be arranged. Contact us to discuss your project needs.
Johor Bahru, Iskandar Puteri, Gelang Patah, Skudai, Kulai, Senai, Nusajaya, Pasir Gudang and surrounding Johor areas. Nationwide projects on request.
